ASUS PRIME GeForce RTX 5070 12GB GDDR7 Graphics Card, AI TBD Engine Clock, 6144 Cuda Core, 28 Gbps Memory, PCI Express 5.0

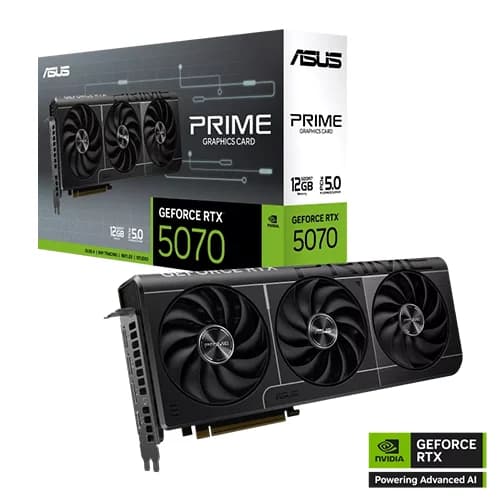

ASUS PRIME GeForce RTX 5070 12GB GDDR7 Graphics Card

Experience powerful graphics performance with the ASUS PRIME GeForce RTX 5070 12GB GDDR7 Graphics Card. Powered by the NVIDIA GeForce RTX 5070 GPU, this graphics card features 6144 CUDA cores, 12GB of GDDR7 memory, a 192-bit memory interface, 28 Gbps memory speed, and PCI Express 5.0 connectivity.

Powerful NVIDIA GeForce RTX 5070 Performance

The ASUS PRIME GeForce RTX 5070 12GB GDDR7 features 6144 CUDA cores and a default boost clock of up to 2512 MHz. When OC Mode is enabled, the card can reach up to 2542 MHz. These clock speeds provide the graphics processing performance required for modern gaming and GPU-intensive applications.

12GB High-Speed GDDR7 Memory

The graphics card is equipped with 12GB of GDDR7 memory running at 28 Gbps. Its 192-bit memory interface provides the bandwidth needed for handling modern games, high-resolution graphics, and demanding GPU workloads.

Compact 2.5-Slot Design

The ASUS PRIME GeForce RTX 5070 12GB GDDR7 features a 2.5-slot design and is listed by ASUS as SFF Ready, making it suitable for compatible small-form-factor PC builds where space is limited. The card measures 304 x 126 x 50 mm.

Triple Axial-Tech Fan Cooling

The ASUS PRIME GeForce RTX 5070 uses a triple-fan cooling design with Axial-Tech fans. The cooling system is designed to provide airflow through the heatsink while helping maintain appropriate operating temperatures during demanding workloads.

The card also incorporates thermal design features including phase-change thermal pads, which are used to provide effective thermal contact between components and the heatsink.

Dual BIOS for Performance and Quiet Operation

The ASUS PRIME RTX 5070 includes a Dual BIOS design, allowing users to switch between Performance Mode and Quiet Mode. This provides an option to prioritize cooling and performance or lower operating noise depending on the selected mode.

ASUS GPU Tweak III

The ASUS PRIME GeForce RTX 5070 12GB GDDR7 With ASUS GPU Tweak III, users can monitor and adjust supported graphics-card settings. The software provides access to GPU monitoring, fan control, and other graphics-card customization features.

NVIDIA Blackwell Architecture

The ASUS PRIME GeForce RTX 5070 is based on the NVIDIA GeForce RTX 5070 GPU and NVIDIA’s Blackwell architecture. It features fourth-generation ray tracing cores and fifth-generation Tensor Cores, supporting advanced ray tracing and AI-powered graphics technologies.

PCI Express 5.0 Support

The ASUS PRIME RTX 5070 uses a PCI Express 5.0 interface, providing compatibility with modern PCIe platforms and high-bandwidth communication between the graphics card and system.

HDMI 2.1b and DisplayPort 2.1b

Connect multiple displays using the graphics card’s 1 x HDMI 2.1b and 3 x DisplayPort 2.1b outputs. The ASUS PRIME RTX 5070 supports up to 4 displays simultaneously and has a digital maximum resolution of 7680 x 4320. HDCP 2.3 is also supported.
