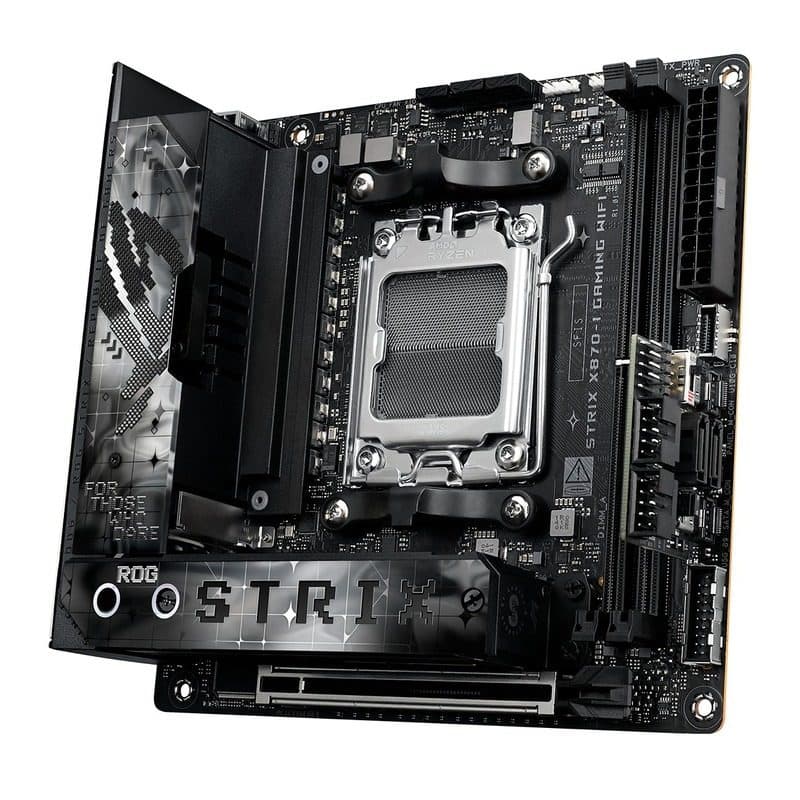

ASUS ROG Strix X870-I Gaming WiFi AM5, PCIe 5.0, WiFi 7

ASUS ROG Strix X870-I Gaming WiFi Motherboard Description & Specifications:

CPU Support:

It works with AMD RyzenTM 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket on the ASUS ROG STRIX X870-I GAMING WIFI Gaming Motherboard. This motherboard has great performance because it works with the newest AMD processors. This means that users can get fast speeds for games, multitasking, and making content. A full list of supported CPUs can be found on the ASUS support page. Please note that compatibility may change by processor model.

Memory Support:

ASUS ROG STRIX X870-I GAMING WIFI Motherboard supports 96GB DDR5 memory with 2 DIMM slots. This motherboard supports fast data processing for demanding activities with memory speeds up to 8400+ MT/s (OC) with Ryzen 9000 Series CPUs, 8600+ with Ryzen 8000 Series processors, and 8000+ with Ryzen 7000 Series processors. The motherboard supports AMD EXPO and ASUS AEMP, improving overclocking and memory performance.

Graphics and Display:

The ASUS ROG STRIX X870-I GAMING WIFI Gaming Motherboard ships with 1 HDMI port and 2 USB4 (40Gbps) connections for USB Type-C display outputs. These ports support 4K at 60Hz HDMI and DisplayPort 1.4a for high-resolution monitors and external displays. Users should consult AMD CPU specifications for graphics specifications.

Expansion and Storage:

The ASUS ROG STRIX X870-I GAMING WIFI Motherboard features a PCIe 5.0 x16 slot for AMD Ryzen 9000 and 7000 Series processors, enabling rapid data transfer speeds for high-performance GPUs. The motherboard supports AMD Ryzen 8000 Series processors with a PCIe 4.0 x16 slot (x8/x4), balancing speed and efficiency. Two M.2 slots and two SATA 6Gb/s connections allow SSDs to be installed for speedier boot times and file transfers.

Networking and Connectivity:

The ASUS ROG STRIX X870-I GAMING WIFI Gaming Motherboard has Intel 2.5Gb Ethernet for fast, dependable wired connections for gaming, video streaming, and massive file transfers. The motherboard has Wi-Fi 7 with 2×2 antennas for 6.5Gbps transfer rates and 2.4/5/6GHz frequency ranges. Bluetooth v5.4 lets it work with many wireless accessories like headphones, keyboards, and mouse.

USB Ports:

The ASUS ROG STRIX X870-I GAMING WIFI Motherboard has many USB ports for devices. The back I/O has 2 USB4 (40Gbps) Type-C ports, 5 USB 10Gbps Type-A and Type-C ports, and 3 USB 2.0 ports. The front I/O contains 1 USB 10Gbps Type-C connector and 1 USB 5Gbps header for extra connections and fast data transfers. For quick device charging, the motherboard offers USB Type-C power supply output at 5V/3A.

Audio:

The ASUS ROG STRIX X870-I GAMING WIFI Gaming Motherboard has ROG Strix Hive II Audio technology with ESS SABRE9260Q DAC and silver-plated audio connectors. A 120dB SNR produces crystal-clear audio from this configuration. The motherboard also has specialised audio PCB layers and ROG Hyper-Grounding Technology to reduce noise and improve audio performance.

Special Features:

Several features improve the usability and performance of the ASUS ROG STRIX X870-I GAMING WIFI Motherboard. ASUS Q-Design offers M.2 Q-Latch and PCIe Slot Q-Release for easy installation, while ASUS Thermal Solution includes M.2 heatsinks and an aluminium backplate for maximum cooling. The motherboard has customisable RGB lighting with Aura Sync and a BIOS FlashBack button for firmware changes without CPU, RAM, or GPU installation.

Software and BIOS Features:

The ASUS ROG STRIX X870-I GAMING WIFI Gaming Motherboard contains ROG-exclusive software including ROG CPU-Z, Dolby Atmos, and Armoury Crate for system monitoring, audio enhancement, and device control. The motherboard has AI Overclocking and Fan Xpert 4 for intelligent system optimization and cooling. UEFI BIOS settings are easy to adjust, and CrashFree BIOS 3 and EZ Flash 3 allow users to restore or upgrade their BIOS.
