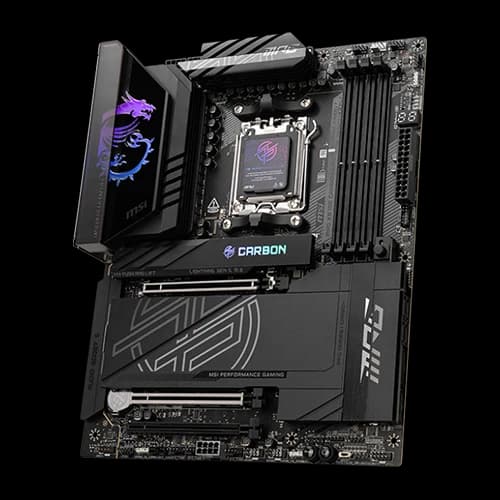

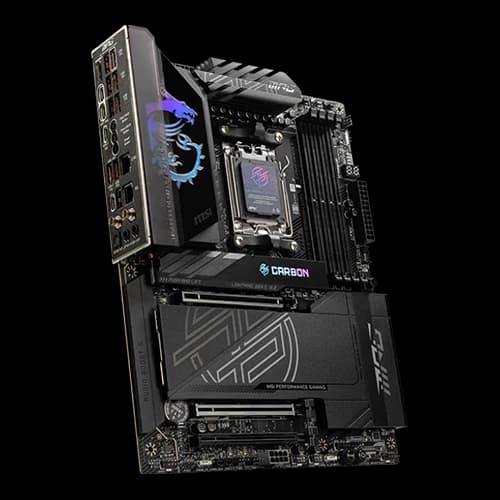

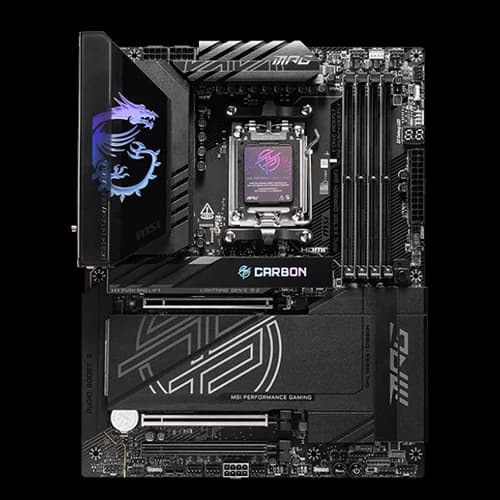

MSI MPG X870E CARBON WIFI Motherboard, AM5 Socket, 4x DDR5 UDIMM up to 256GB Memory, Realtek ALC4080 Codec, Wi-Fi 7 Solution, 4x EZ Debug LED, ATX Form Factor | 911-7E49-001

MSI MPG X870E CARBON WIFI Motherboard Description & Specifications:

The MSI MPG X870E CARBON WIFI Motherboard is designed for people who want the fastest and most flexible performance. MSI MPG X870E CARBON WIFI Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors and Socket AM5. It’s the building block for a high-performance machine that can handle both intense gaming and content creation.

 CPU and Memory Support:

This computer can handle DDR5 memory with a size of up to 256GB, which means it will work better even when you’re doing a lot of work. It is made to work with DDR5 speeds between 4800 MT/s (JEDEC standard) and 8400 MT/s (overclocked), which gives you options for how to set up your machine. Memory overclocking is possible with AMD EXPOTM, which makes your setup run faster. This motherboard is made to push your system to its limits, whether you need the most memory speed for games or making content.

 Graphics and Display:

The MSI X870E CARBON motherboard offers many visual output choices, including 1x HDMI 2.1 (FRL support for 8K at 60Hz) and 2x Type-C DisplayPort (USB4® supporting DisplayPort 1.4 with HBR3, up to 4K at 60Hz). These features make it ideal for gamers and media producers who need high-resolution monitors. Integrated graphics on CPUs with onboard graphics vary in performance.

 Storage and Expansion:

4x M.2 slots and 4x SATA 6G ports give the MSI X870E CARBON plenty of capacity for NVMe SSDs. The M.2_1 and M.2_2 slots feature PCIe 5.0 x4, enabling rapid data transmission and system responsiveness. For flexible and redundant high-performance storage configurations, the motherboard supports RAID 0, RAID 1, and RAID 10 for SATA and NVMe M.2 storage devices.

 PCI-E Slots and Multi-GPU Support:

The 3x PCI-E x16 slots on the X870E CARBON motherboard enable PCIe 5.0 and 4.0 for advanced expansion card possibilities. PCIe 5.0 speeds in the PCI_E1 and PCI_E2 slots provide maximal performance for GPUs and other high-speed devices. For expansion, the PCI_E3 slot supports PCIe 4.0 x4. AMD Multi-GPU technology lets customers add several GPUs for better visuals in games and 3D rendering on the motherboard.

 Audio and Networking:

Realtek ALC4080 Codec provides 7.1-channel high-performance audio with 32-bit/384kHz playback on the MSI MPG X870E CARBON WIFI Motherboard. High-end audio systems may be connected via S/PDIF output. Realtek 8126 5G LAN and Realtek 8125 2.5G LAN provide excellent wired network connectivity, and Wi-Fi 7 provides wireless performance. Wi-Fi 7 supports Bluetooth 5.4 and rates up to 5.8Gbps across 2.4GHz, 5GHz, and 6GHz bands for smooth wireless connectivity.

 USB Ports and Connectivity:

The X870E CARBON motherboard offers a range of USB ports to suit your connectivity needs, including 2x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 9x USB 10Gbps Type-A (rear), and 4x USB 5Gbps Type-A (front). This extensive selection of ports ensures you can quickly connect your peripherals and enjoy high-speed data transfer.

LED Features and Debugging Tools:

For system diagnostics, the motherboard includes EZ Debug LED and EZ Digit Debug LED, which help identify and troubleshoot issues during the boot process. These features ensure that users can easily pinpoint any problems, making it a great option for enthusiasts and professionals who require a reliable system with minimal downtime.

Wireless LAN and Bluetooth:

The X870E CARBON is equipped with the latest Wi-Fi 7 solution, featuring support for MU-MIMO TX/RX and 6GHz band, enabling exceptional speeds and network performance. Bluetooth 5.4 support further enhances wireless connectivity, with MLO and 4KQAM technologies offering a smooth experience with connected devices.
