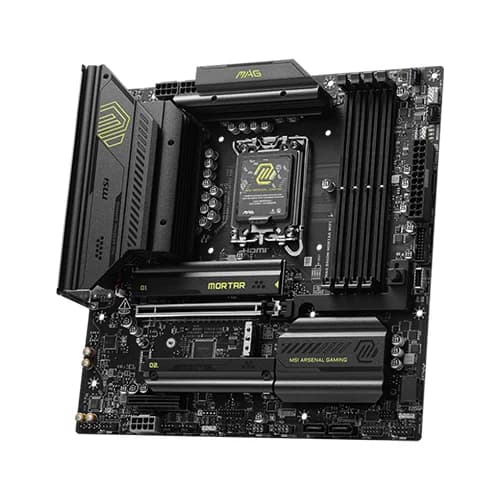

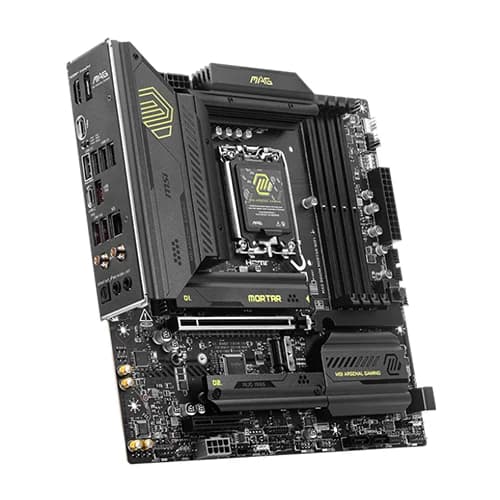

MSI MAG B860M MORTAR WIFI Motherboard, Intel Core Ultra Processors, Intel B860 Chipset, 256GB Memory, 4x DDR5 UDIMM, 1x PCI-E x16 slot, mATX Form Factor

msi logo MPN: 911-7E40-002
  • MSI MAG B860M MORTAR WIFI supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket.
  • 4x DDR5 slots, up to 256GB memory, supports overclocking and XMP 3.0.
  • PCIe 5.0 x16 slot, PCIe 4.0 x4 slot for high-speed expansion.
  • 3x M.2 slots (PCIe 5.0 & 4.0) and 4x SATA 6G for storage.

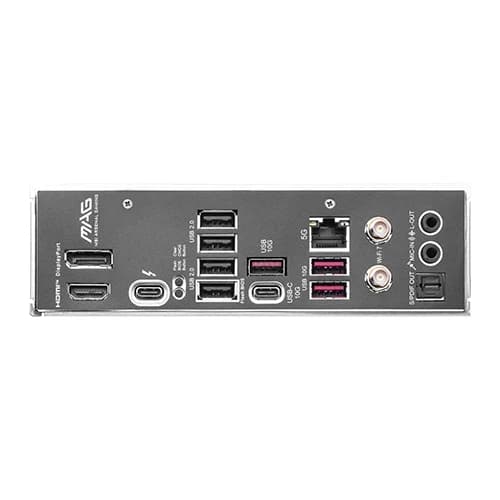

  • Thunderbolt 4, USB 10Gbps, and 5Gbps LAN for fast connectivity.
  • Wi-Fi 7 and Bluetooth 5.4 for advanced wireless performance.
  • Supports HDMI 2.1, DisplayPort 1.4, and Type-C DisplayPort up to 8K.
  • mATX form factor with EZ Debug LEDs and Windows 11 support.
msi-mag-b860m-mortar-wifi-motherboard-2 MSI MAG B860M MORTAR WIFI Moth...

1,099.00 AED

Add to cart

1,099.00 AED

MSI MAG B860M MORTAR WIFI Motherboard Description & Specifications:

The MSI MAG B860M MORTAR WIFI Motherboard is designed specifically to provide support for Intel Core Ultra Series 2 Processors with the B860 chipset and LGA 1851 socket. The micro-ATX motherboard is built to handle demanding tasks easily and provides stability, efficiency and power combined.

Enhanced Cooling Performance with Frozr Guard:

Keeps the system cool even under high pressure, the MSI MAG B860M MORTAR WIFI Motherboard has:

  • Extended Heatsinks & MOSFET Thermal Pads: Equipped to improve heat dissipation from the system while the thermal pads and additional choke thermal pads deliver efficient cooling.
  • EZ M.2 Shield Frozr II: Prevents the SSD from overheating even under heavy workload.

Super-Fast DDR5 Memory for Maximum Speed:

The MSI B860M MORTAR Motherboard is equipped with super-fast four DDR5 DIMM slots which supports dual-channel DDR5 memory up to 256GB. Comes with overclocking capabilities up to 9200+ MT/s for faster speed and efficiency. Memory boost technology ensures stability.

PCIe 5.0 Support & Storage Options:

Provides support for PCIe 5.0 x16 slots and MSI B860M Motherboard has multiple storage options including one M.2 Gen5 x4 128 Gbps slot for providing super-fast NVMe SSDs, EZ M.2 Shield Frozr II delivers efficient cooling and quick installation.

Enhanced Connectivity & Networking with Wi-Fi 7 & Thunderbolt 4:

The MSI MORTAR Motherboard comes with multiple connectivity, networking options with Audio boost, features:

  • Intel Killer Wi-Fi 7 & 5G LAN – Provides super-fast wireless and wired networking with reduced latency.
  • Thunderbolt 4 Type-C Port — Delivers high-speed data transfer even under high workload and display support.
  • 7.1 HD Audio – Experience every shot, victory or sound with utmost clarity and high sound quality.

EZ DIY Features for Quick Installation:

The MSI MORTAR Motherboard is equipped with EZ PCIe release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna making installation quick and easy. Allowing users to build or upgrade their dream PC like never before.
