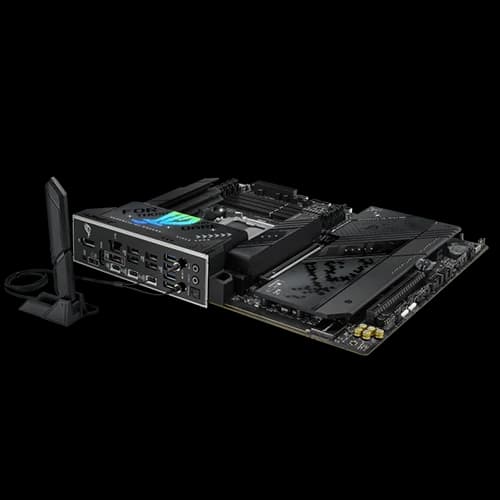

ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard Description & Specifications:
CPU Support:
ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard works with many AMD Ryzen 9000, 8000, and 7000 Series desktop processors, so it can be used with AMD's newest and most powerful chips. The AM5 socket makes it easy for users to add the newest CPUs and get the most out of their processing power.
Memory Support:
ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard supports up to 192GB DDR5 RAM with 4 DIMM slots. This boosts performance in memory-intensive programs like 3D rendering, video editing, and gaming. The motherboard allows customers to overclock memory rates up to 8000+ MT/s (OC) with Ryzen™ 9000, 8000, and 7000 Series processors for improved performance. It also supports ECC and non-ECC memory, giving customers memory configuration freedom.
Graphics:
ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard has multiple graphics displays. It has 1 DisplayPort and 1 HDMI™ connector for high-resolution monitors. The motherboard supports 8K at 30Hz via DisplayPort and 4K at 60Hz via HDMI 2.1, giving gamers and multimedia creators excellent images. Two USB4 ports with USB Type-C display outputs allow 4K resolution at 60Hz.
Expansion and Storage:
The ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard supports PCIe 5.0 with an x16 slot, allowing modern graphics cards and other expansion cards to transfer data quickly. Users can customise their PC setup with various expansion cards using the motherboard's PCIe 4.0 x16 and x4 slots, depending on the processor. The motherboard has 4 M.2 slots for ultra-fast storage solutions with PCIe 5.0 and PCIe 4.0 speeds.
Networking:
The ASUS ROG X870-F Gaming WiFi ATX Motherboard comes equipped with Intel 2.5Gb Ethernet, which provides faster and more stable wired connections, ideal for gaming and content creation where low-latency and high-speed internet are important. In addition, it features Wi-Fi 7 technology, offering up to 6.5Gbps transfer speeds.
USB Ports:

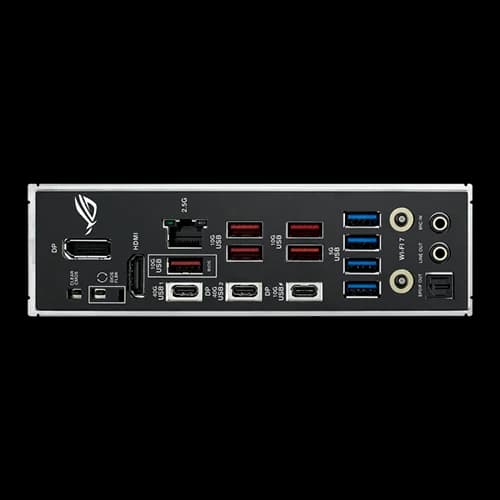

The ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard includes an extensive range of USB ports to connect your peripherals. The rear I/O features 12 USB ports, including 2 USB4 40Gbps ports, which offer incredibly high-speed data transfer and support USB Type-C connections. In addition, there are 6 USB 10Gbps ports (with 5 Type-A and 1 USB Type-C) and 4 USB 5Gbps ports, giving users plenty of options for high-speed data connections.
Audio:
ROG SupremeFX 7.1 High Definition Surround Sound System On the ASUS ROG Strix X870-F Gaming WiFi ATX Motherboard , the CODEC ALC4080 produces excellent sound for gaming and content creation. Clean, engrossing tones are produced by the 120dB SNR stereo playback output and the impedance-sensing front and rear headphone outputs. To enhance sound, the motherboard has top-notch audio capacitors and a Savitech SV3H712 AMP.
Special Features:
The ASUS X870 F GAMING WIFI STRIX Gaming Motherboard has various user-friendly features. Extreme Engine Digi+ delivers high-efficiency power for reliable performance, while ASUS Q-Design simplifies installation with M.2 Q-Latch and PCIe Q-Release. The motherboard also has an M.2 heatsink, backplate, and Fan Xpert 4 for maximum cooling of high-performance components. Users can customize their system's appearance with Aura Sync RGB lights on the motherboard.
Software and BIOS Features:
The ASUS X870 F GAMING WIFI STRIX Gaming Motherboard has proprietary software to boost performance and usability. Armoury Crate centralises system and device administration, while Fan Xpert 4 optimises cooling. UEFI BIOS features like AI Overclocking, CrashFree BIOS 3, and EZ Flash 3 make overclocking and system administration easy.
