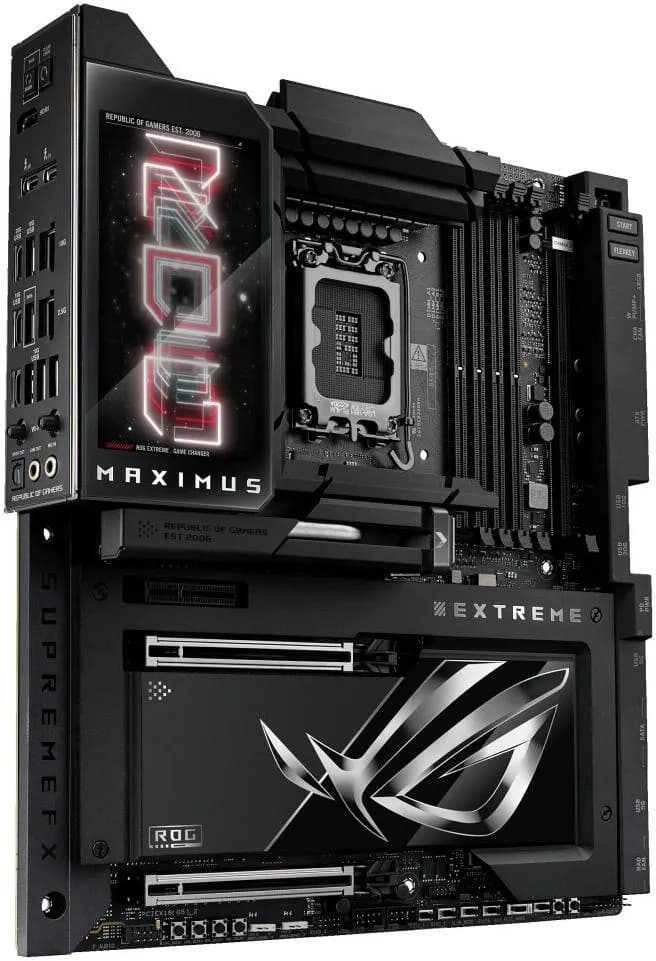

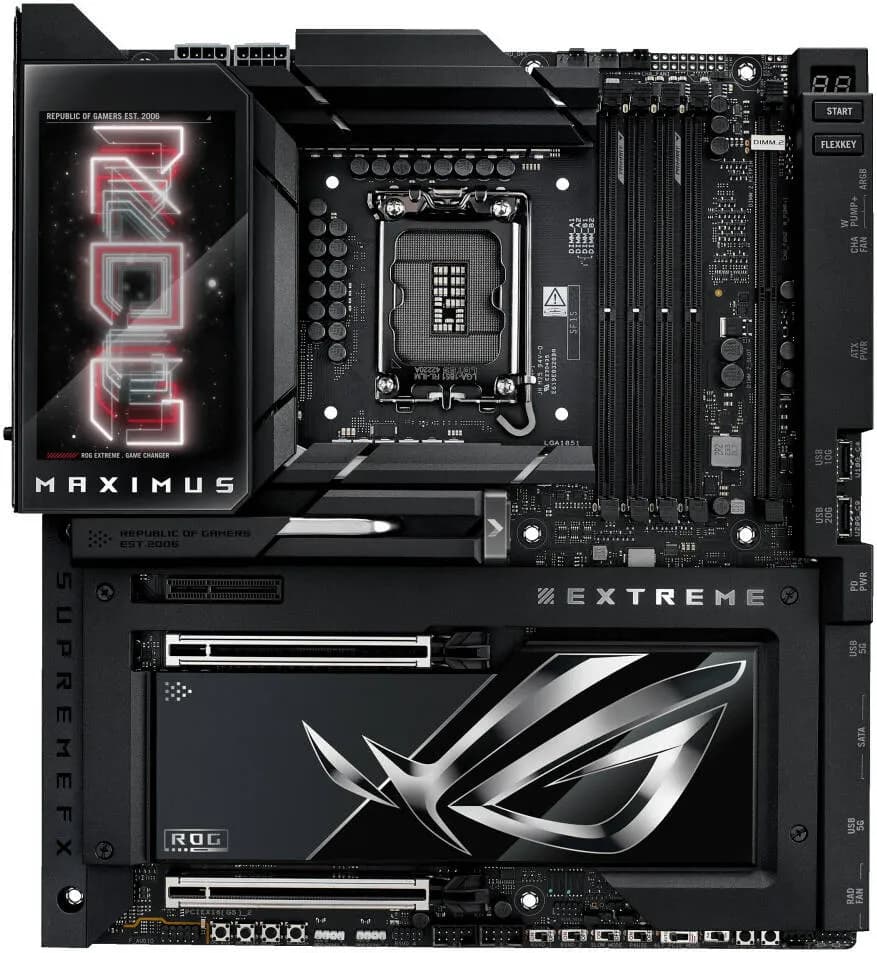

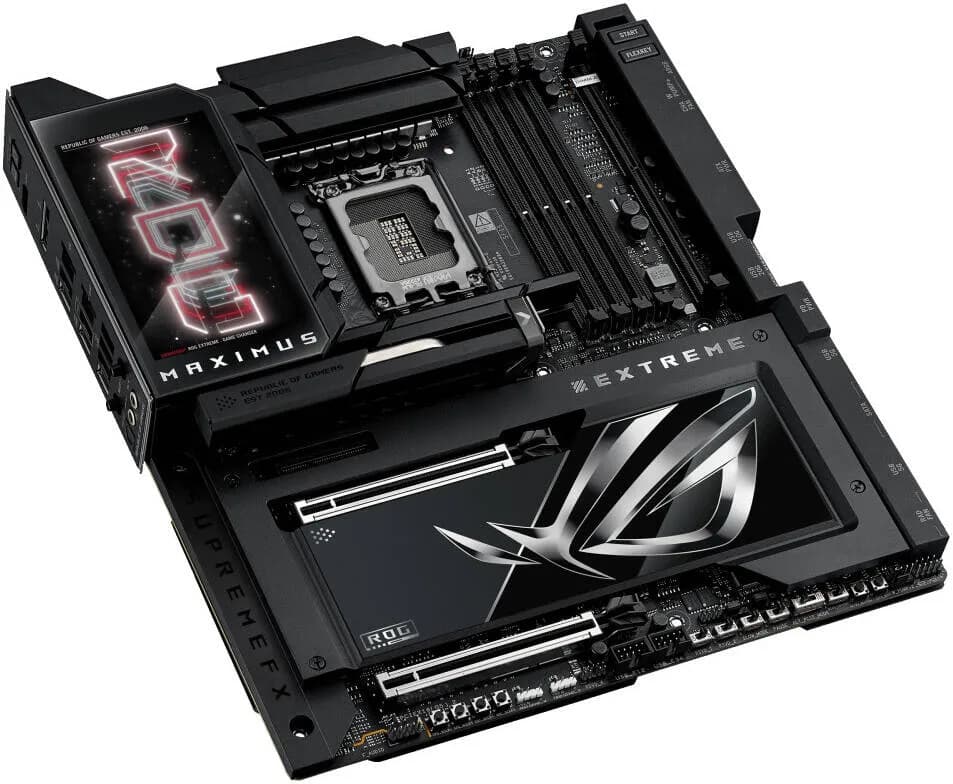

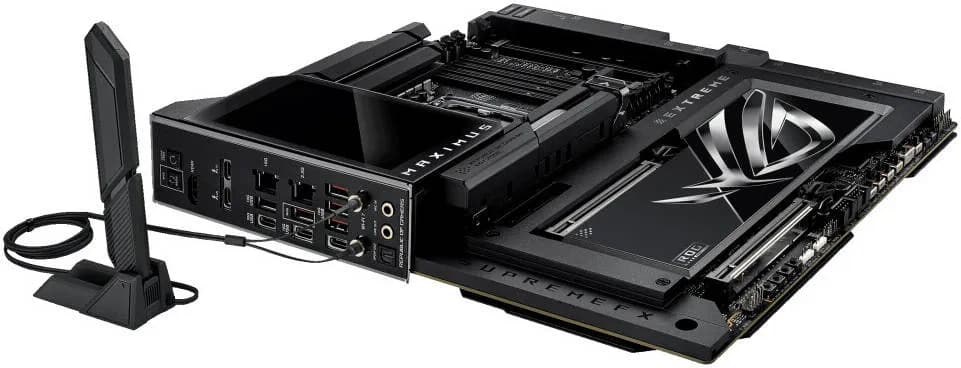

ROG Maximus Z890 Extreme

The ASUS ROG Maximus Z890 Extreme is a premium ATX motherboard built for enthusiasts, gamers, and overclockers seeking exceptional performance. Powered by the Intel Z890 chipset and supporting Intel Core Ultra processors with the LGA 1851 socket, it features DDR5 memory support up to 192GB, PCIe 5.0 connectivity, Wi-Fi 7, Bluetooth 5.4, and extensive M.2 storage options. Designed for next-generation gaming and productivity, it delivers advanced cooling, robust power delivery, and premium ROG features.

Specifications



CPU	- Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 - Supports Intel® Turbo Boost Technology 2.0 and 3.0 (CPU type dependent) - CPU support list
Chipset	Intel® Z890 Chipset
Memory	- 4 x DIMM slots, max. 192GB, DDR5 - Supports up to 9200+MT/s (OC), Non-ECC, Unbuffered - Dual Channel Architecture - Supports XMP, AEMP III, DIMM Flex, NitroPath DRAM Technology - Memory support
Graphics	- 1 x HDMI port (max. 8K@60Hz) - 2 x Thunderbolt™ 5 ports (supports multiple monitors, up to 8K@60Hz) - Graphics specs may vary by CPU type
Expansion Slots	- 2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x4 slot - PCIe bifurcation table
Storage	- Up to 6 x M.2 slots, 4 x SATA 6Gb/s ports - RAID support for various configurations
Ethernet	- 1 x Intel® 2.5Gb Ethernet - 1 x Marvell® AQtion 10Gb Ethernet - ASUS LANGuard
Wireless & Bluetooth	- Intel® Wi-Fi 7 (802.11be), up to 5.8Gbps - Bluetooth® v5.4
USB Ports	Rear: 10 ports (2 x Thunderbolt™ 5, 1 x USB 20Gbps, 7 x USB 10Gbps) Front: 10 ports (1 x USB 20Gbps, 1 x USB 10Gbps, 2 x USB 5Gbps, 2 x USB 2.0 headers)
Audio	- ROG SupremeFX 7.1 Surround Sound - High definition audio CODEC ALC4082 - ESS® ES9219 QUAD DAC
Back Panel I/O Ports	- 2 x Thunderbolt™ 5 USB Type-C® - 1 x USB 20Gbps port - 7 x USB 10Gbps ports - 1 x HDMI port - 1 x Intel® 2.5Gb Ethernet port - 1 x Marvell® AQtion 10Gb Ethernet port - 2 x LED-illuminated audio jacks
Internal I/O Connectors	- Fan headers, power connectors, storage connectors (4 x M.2 slots, 4 x SATA 6Gb/s ports)
Miscellaneous	- 1 x 6-pin ARGB Gen 2 header, various buttons and headers for additional functionalities
Special Features	- Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Dual BIOS, Full Color LCD Display, ROG M.2 PowerBoost
Software Features	- ROG Exclusive Software (CPU-Z, Dolby Atmos, Internet Security) - ASUS Exclusive Software (Armoury Crate, Fan Xpert 4, etc.)
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME
Accessories	Includes various cables, connectors, thermal pads, and installation media (USB drive with utilities and drivers)
Operating System	Windows 11 (22H2 & later)
Form Factor	E-ATX Form Factor (12" x 10.9" / 30.5 cm x 27.7 cm)
