| Model |

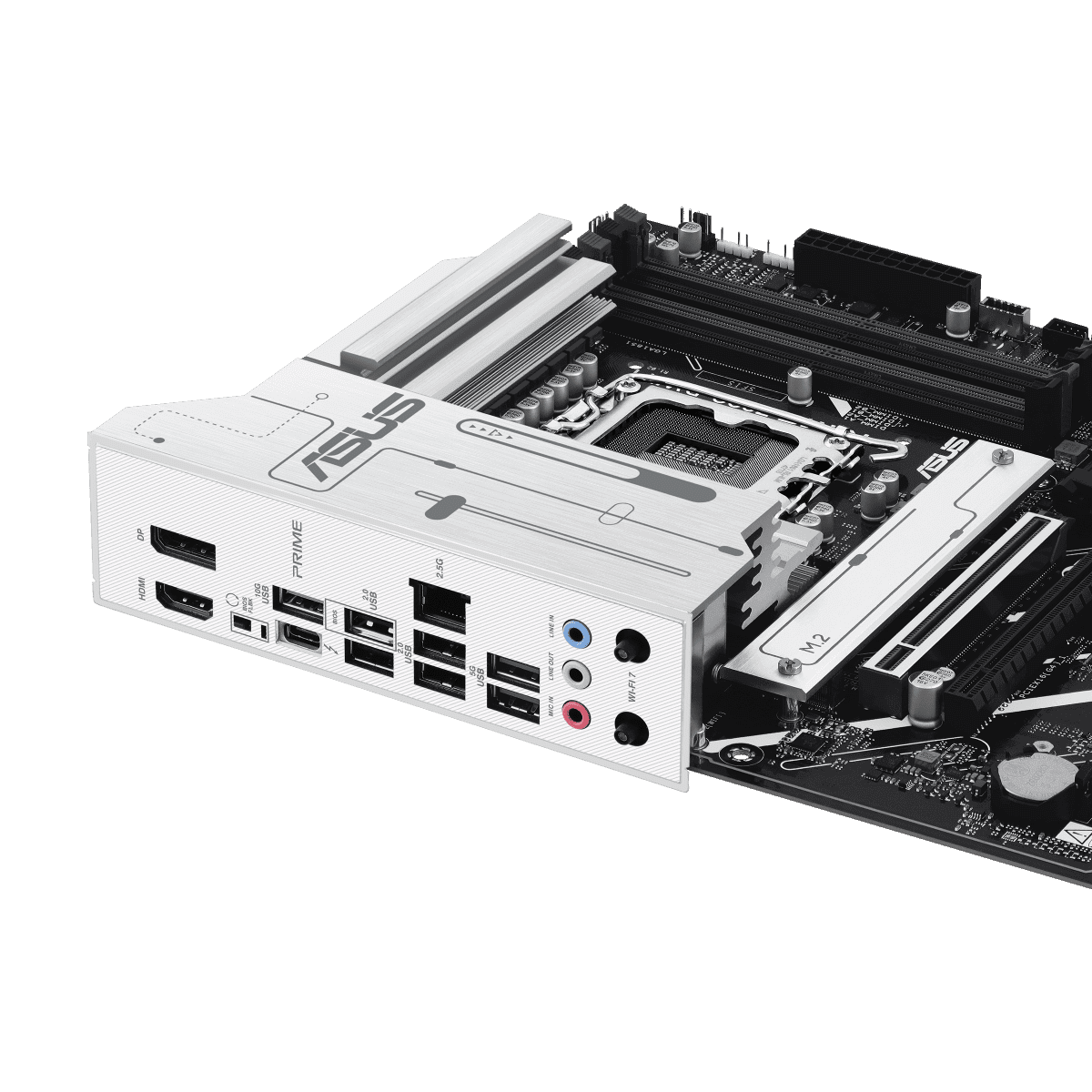

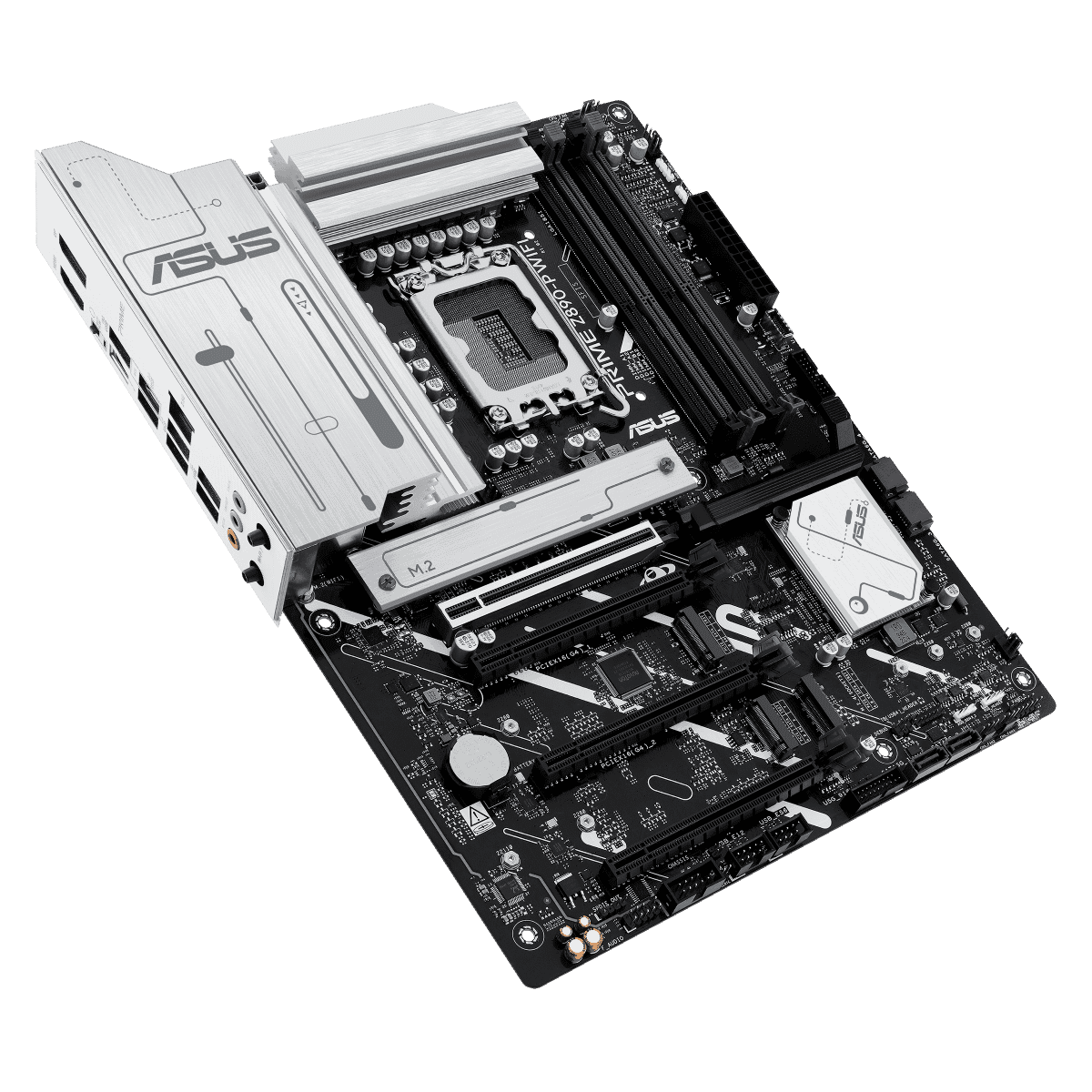

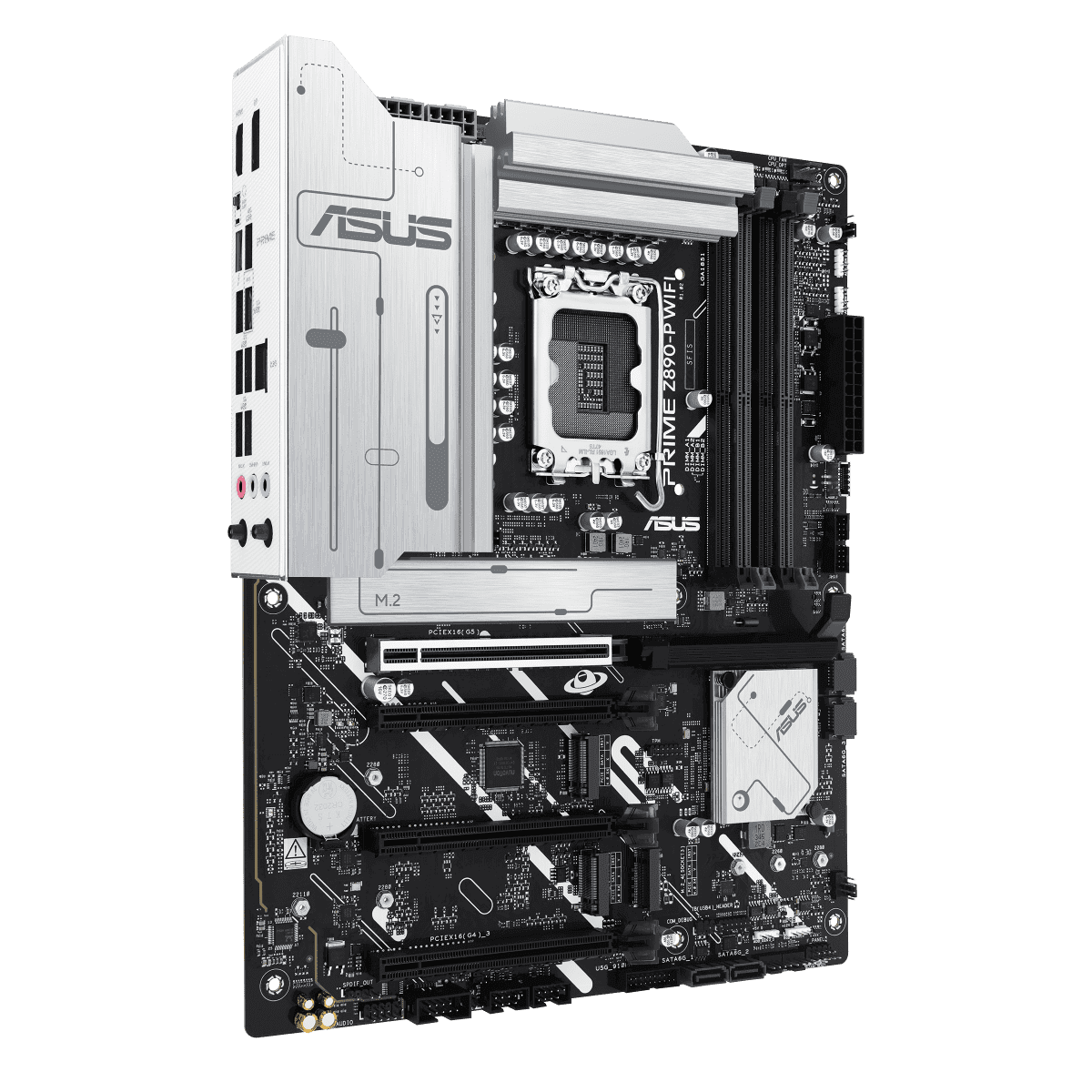

PRIME Z890-P WIFI |
| CPU Support |
Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset |
Intel® Z890 Chipset |
| Memory |
4x DIMM slots, max. 192GB, DDR5, Dual Channel, 8666+MT/s (OC), Non-ECC, Un-buffered |
| Graphics |
1x DisplayPort (4K@60Hz), 1x HDMI (4K@60Hz), 1x Thunderbolt™ 4 (USB-C) (supports 8K@60Hz, DSC, DP Alt mode) |
| Expansion Slots |
1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x16 (x1 mode) |
| Storage |
4x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, SATA), 4x SATA 6Gb/s ports |
| Ethernet |
1x Realtek 2.5Gb Ethernet, ASUS LANGuard |

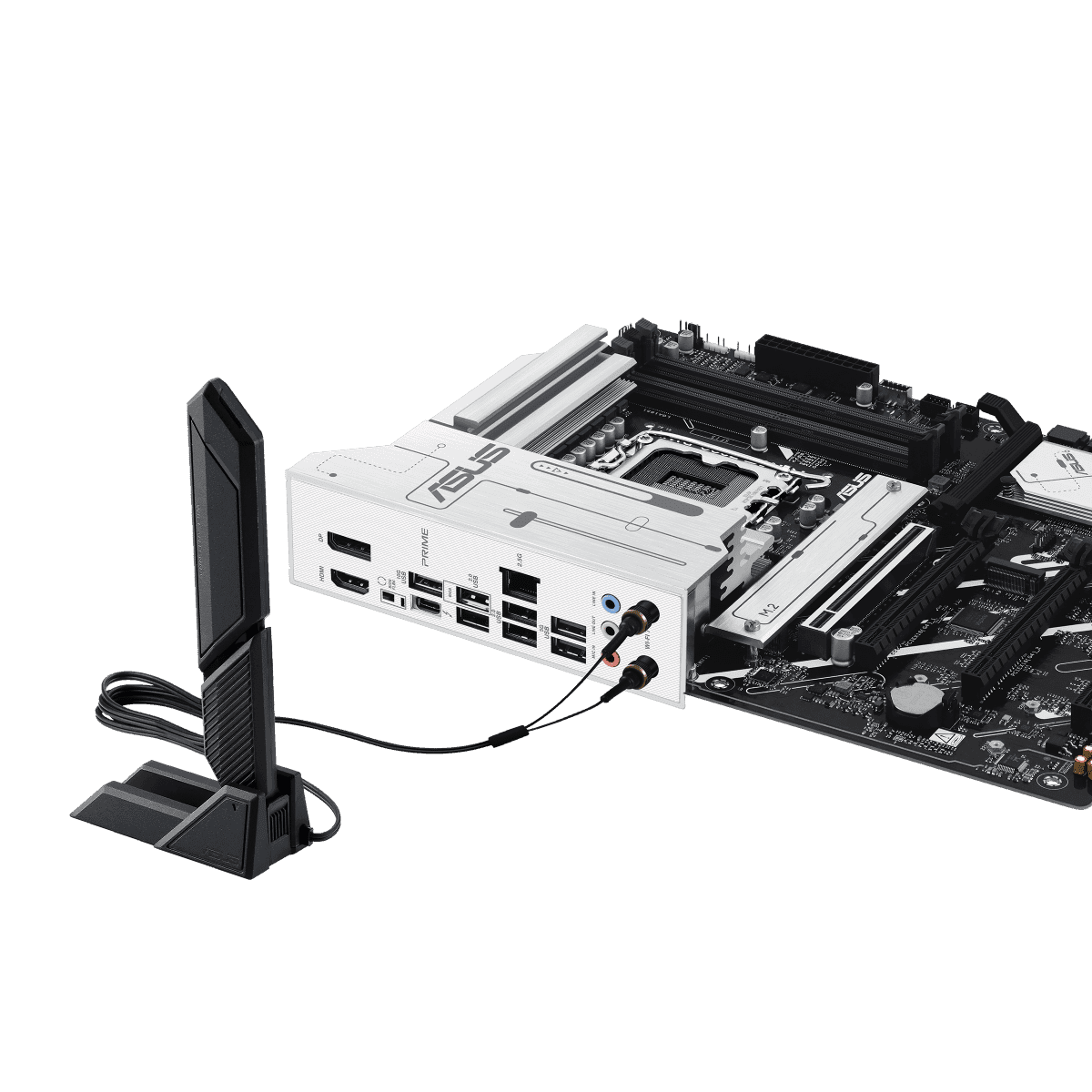

| Wireless & Bluetooth |
Wi-Fi 7 (2x2), 2.9Gbps, Bluetooth® v5.4 |
| Rear USB Ports |
1x Thunderbolt™ 4 (USB-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A) |
| Front USB Ports |
1x USB 10Gbps (USB-C), 4x USB 5Gbps, 4x USB 2.0 |
| Audio |
Realtek 7.1 Surround Sound HD Audio CODEC |

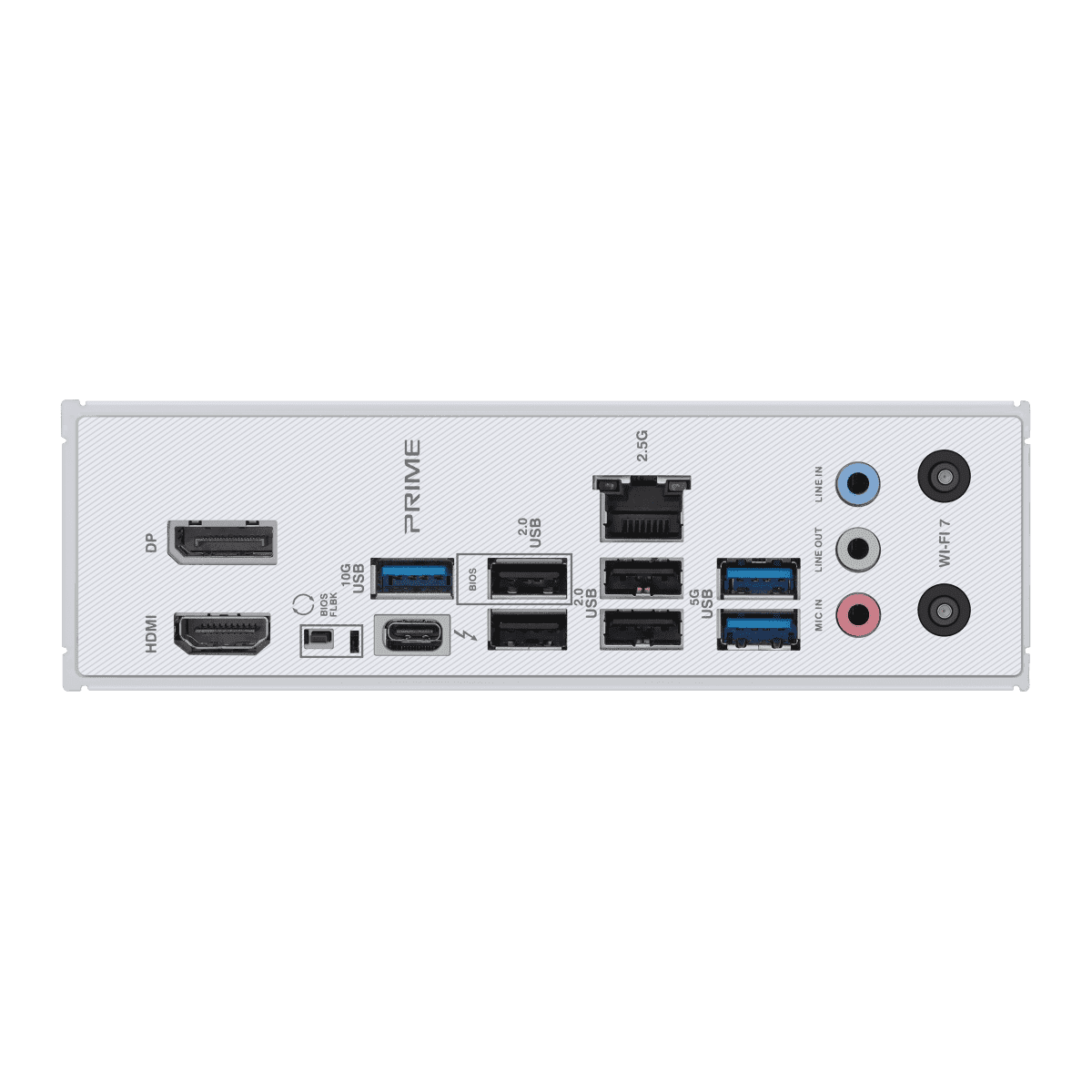

| Back Panel I/O Ports |
1x Thunderbolt™ 4 (USB-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0, 1x DisplayPort, 1x HDMI, 1x Wi-Fi module, 1x 2.5Gb Ethernet, 3x Audio jacks |
| Internal I/O Connectors |
1x CPU Fan header, 1x CPU OPT Fan header, 1x AIO Pump header, 4x Chassis Fan headers, 1x 24-pin Main Power, 2x 8-pin CPU Power, 4x M.2 slots, 4x SATA ports, 1x USB-C header (10Gbps), 4x USB 5Gbps ports, 4x USB 2.0 ports |
| Special Features |
ASUS 5X Protection III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
| Software |
Armoury Crate, Aura Sync, Fan Xpert 4, ASUS AI Advisor, TurboV Core, Norton 360 (60 Days), WinRAR (40 Days) |
| BIOS |
UEFI AMI BIOS, 256Mb Flash ROM, ASUS EZ DIY |
| Operating System |
Windows 11 (22H2 & later) |
| Form Factor |
ATX, 30.5 cm x 24.4 cm |
