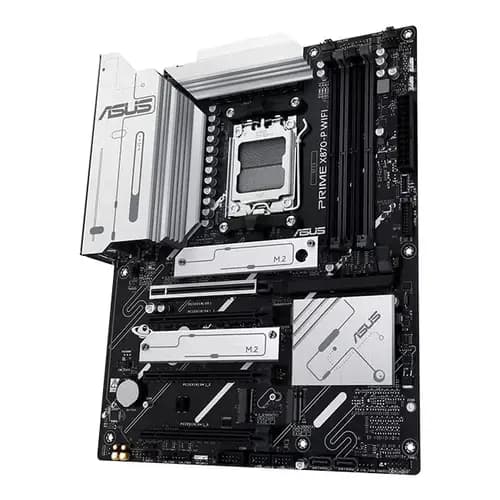

ASUS PRIME X870-P WIFI ATX Motherboard, AMD X870 Chipset, 4x DIMM DDR5 Slots, 192GB Max Memory, Realtek 2.5Gb Ethernet, 4x M.2 Slots, 1x PCIe 5.0 x16, 2x PCIe 4.0 x16, WiFi 6E, BT 5.4, HDMI 2.1 | 90MB1IS0-M0EAY0

ASUS PRIME X870-P WIFI ATX Motherboard Description and Specifications:

CPU Support:

ASUS PRIME X870-P WIFI ATX Motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs, using the newest Socket AM5 processors. Users may benefit from the newest CPU technology, which boosts processing power and efficiency. It supports high-core count processors, making it excellent for gaming, multimedia production, and data processing.

Chipset:

AMD’s X870 chipset powers the ASUS PRIME X870-P WIFI motherboard, supporting PCIe 5.0, higher memory speeds, and more efficient data transfer protocols. This chipset speeds CPU, storage, and expansion card connectivity, improving motherboard performance. X870 chipset users may expect strong multitasking, better bandwidth, and ease of handling intense tasks.

Memory:

The motherboard supports up to 192GB of DDR5 memory in 4 DIMM slots. Memory rates up to 8000+ MT/s (OC) enable enthusiasts to maximize system performance, particularly with Ryzen 9000, 8000, and 7000 Series CPUs. It also supports ECC and non-ECC un-buffered DIMM memory, making it compatible with many memory configurations.

Graphics:

The ASUS PRIME X870-P WIFI motherboard has numerous graphics choices for customer flexibility. The device has 1 HDMI™ connector and 2 USB4 (40Gbps) Type-C interfaces, providing 4K resolution at 60Hz. For gamers and professionals who need high-definition graphics, USB4 connections employ DisplayPort 1.4a. Additionally, the HDMI™ 2.1 connector offers 4K at 60Hz for stunning graphics. Users may employ integrated graphics or a discrete GPU depending on the CPU.

Expansion Slots:

The ASUS PRIME X870-P WIFI motherboard has many PCIe slots for expansion cards, making it suited for high-end gaming and professional workstations. The Ryzen™9000 & 7000 Series CPUs have a PCIe 5.0 x16 slot for fast connections to graphics cards, SSDs, and other PCIe devices.  This motherboard supports Ryzen™ 8000 Series CPUs with a PCIe 4.0 x16 slot that operates in x8/x4 mode. Users may connect networking, storage, and other peripheral expansion cards to the motherboard’s three PCIe 4.0 x16 slots (in x1 mode). Due to bandwidth sharing with M.2 slots, customers must select between devices depending on their demands.

Storage Options:

4 M.2 slots and 2 SATA 6Gb/s connectors allow the ASUS PRIME X870-P WIFI motherboard to accommodate high-speed storage devices. The M.2_1 slot offers PCIe 5.0 x4 for better data transfer rates with Ryzen 9000 & 7000 Series CPUs, while the other slots support PCIe 4.0 and 3.0. The motherboard enables RAID setups for data redundancy or performance-boosting storage arrays. This setup is perfect for gamers, multimedia creators, and server users that require plenty of storage and fast data access.

Networking and Wireless Connectivity:

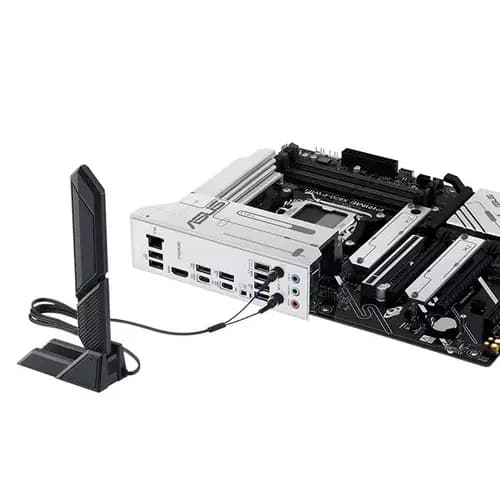

Wi-Fi 7 and Bluetooth v5.4 on the ASUS PRIME X870-P WIFI motherboard offer fast, dependable wireless communication. Wi-Fi 7 provides 160MHz bandwidth and 2.9Gbps speeds, making it ideal for online gaming, 4K streaming, and massive file transfers. This motherboard has a Realtek 2.5Gb Ethernet port for fast wired networking. Bluetooth v5.4 improves its wireless capabilities, allowing smooth connections to Bluetooth-enabled headsets, speakers, and keyboards.

USB Ports:

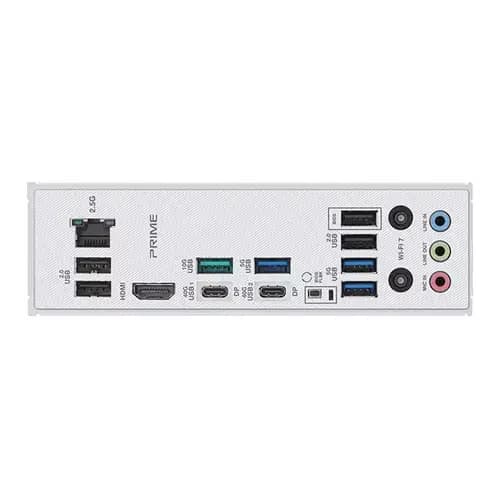

The ASUS PRIME X870-P WIFI motherboard has several USB ports for connecting devices. The back I/O offers 2 USB4 (40Gbps) Type-C connectors, 1 USB 10Gbps Type-A port, and many USB 5Gbps and USB 2.0 connections for storage devices, keyboards, and mice. The motherboard has a USB 10Gbps connection and USB headers for extra USB ports on the front. This wide range of USB ports lets customers connect many high-speed devices without affecting performance.

Audio:

The ASUS PRIME X870-P WIFI motherboard has a Realtek 7.1 Surround Sound High Definition Audio CODEC for gaming, content production, and media consumption. This CODEC supports 24-Bit/192 kHz playback for excellent sound. Premium audio capacitors and audio PCB layers on the motherboard provide high-fidelity audio. High-end gaming and multimedia applications benefit from the immersive 7.1 surround sound.

Cooling and Thermal Solutions:

The ASUS PRIME X870-P WIFI motherboard uses ASUS Thermal Solutions to cool efficiently under severe loads. The motherboard’s flexible M.2 and VRM heatsinks keep your system cool and stable while gaming, video rendering, and multitasking. Effective cooling lowers thermal throttling, which may hurt system performance. These innovative thermal solutions keep components cool and work well, increasing their lifetime.

BIOS and Software:

The ASUS PRIME X870-P WIFI motherboard has an easy-to-use UEFI BIOS. EZ Mode lets users easily optimize their system. ASUS Armoury Crate software controls RGB lights, fan speeds, and system performance. Advanced users may customize and tune performance using Fan Xpert 4 and TurboV Core.
